SOLVED CloudCanalProcessorV2使用问题-字段无法正确赋值
-
需求
通过自定义代码实现对一个表修改日志的自动记录:每次数据源表有变化,不管新增,修改,删除,目标表都需要新增一条记录。
问题
新增成功了,但是有个字段(is_del)赋值不对。
配置
### 数据源表 create table test1 ( id bigint not null primary key auto_increment comment ' ID', type int(4) null comment '类型', num int(8) null comment '排序', status int(8) null comment '状态' ) comment '测试';
### 目标表 create table test1_log ( id bigint not null primary key auto_increment comment 'ID', is_del tinyint(1) not null comment '是否删除,0初始1修改2删除', test1_id bigint null comment 'test1_ID', type int(4) null comment '类型', num int(8) null comment '排序', status int(8) null comment '状态' ) comment '测试日志';

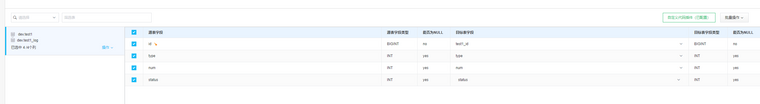

字段映射
自定义代码public class MySqlToMySql_log implements CloudCanalProcessorV2 { protected static final Logger log = LoggerFactory.getLogger("custom_processor"); private SchemaInfo targetTable = new SchemaInfo(null, "dev", "test1"); private CustomFieldV2 isDel_0 = CustomFieldV2.buildField("is_del", 0, Types.TINYINT, false, true, false); private CustomFieldV2 isDel_1 = CustomFieldV2.buildField("is_del", 1, Types.TINYINT, false, true, false); private CustomFieldV2 isDel_2 = CustomFieldV2.buildField("is_del", 2, Types.TINYINT, false, true, false); @Override public void start(ProcessorContext context) { // do nothing } @Override public List<CustomData> process(CustomData data) { log.info("开始。。。。。。。。。。。。。。"); List<CustomData> re = new ArrayList<>(); if (data.getSchemaInfo().equals(targetTable)) { handleFactTable(re, data); } else { re.add(data); } log.info("结束。。。。。。。。。。。。。。"); return re; } protected void handleFactTable(List<CustomData> re, CustomData data) { Iterator<CustomRecordV2> it = data.getRecords().iterator(); CustomData res = new CustomData(data.getSchemaInfo(), EventTypeInSdk.INSERT, new ArrayList<>()); while (it.hasNext()) { CustomRecordV2 recordV2 = it.next(); switch (data.getEventType()) { case INSERT: { CustomFieldV2 dataIsDel = isDel_0.cloneField(); recordV2.getAfterColumnMap().put(dataIsDel.getFieldName(), dataIsDel); res.getRecords().add(recordV2.cloneRecord()); break; } case UPDATE: { CustomFieldV2 dataIsDel = isDel_1.cloneField(); recordV2.getAfterColumnMap().put(dataIsDel.getFieldName(), dataIsDel); recordV2.getBeforeColumnMap().clear(); recordV2.getBeforeKeyColumnMap().clear(); res.getRecords().add(recordV2.cloneRecord()); break; } case DELETE: { CustomFieldV2 dataIsDel = isDel_2.cloneField(); recordV2.getAfterColumnMap().put(dataIsDel.getFieldName(), dataIsDel); recordV2.getBeforeColumnMap().clear(); recordV2.getBeforeKeyColumnMap().clear(); res.getRecords().add(recordV2.cloneRecord()); break; } default: { break; } } } log.info("结果CustomData:{}", res); re.add(res); } @Override public void stop() { // do nothing } }
### 第一次执行 INSERT INTO dev.test1 (id, type, num, status) VALUES (1, 1, 1, 1); INSERT INTO dev.test1 (id, type, num, status) VALUES (2, 2, 2, 2); INSERT INTO dev.test1 (id, type, num, status) VALUES (3, 3, 3, 3); ### 第二次执行 UPDATE dev.test1 t SET t.num = 0 WHERE t.id = 1; UPDATE dev.test1 t SET t.num = 0 WHERE t.id = 2; UPDATE dev.test1 t SET t.num = 0 WHERE t.id = 3; ### 第三次执行 DELETE FROM dev.test1 WHERE id = 1; DELETE FROM dev.test1 WHERE id = 2; DELETE FROM dev.test1 WHERE id = 3;

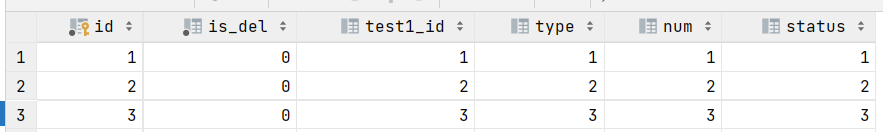

第一次执行结果

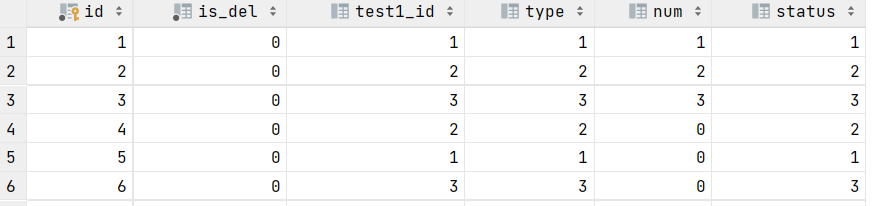

第二次执行结果

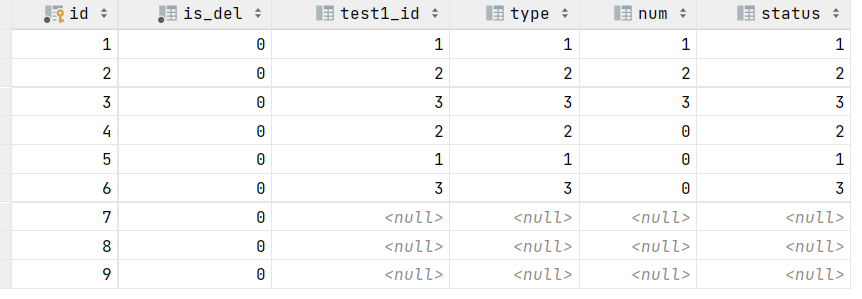

第三次执行结果
希望预期时第一次执行结果里is_del为0,第二次执行结果里is_del为1,第三次执行结果里is_del为2。
但是三次执行结果里is_del都是0 -
@微希夷 不好意思,回复有点晚。
private CustomFieldV2 isDel_0 = CustomFieldV2.buildField(“is_del”, 0, Types.TINYINT, false, true, false);
把最后一个字段isUpdated 改成true.
